Fast and powerful vertical baler with a small 1.5m2 footprint. The A509 combines speed and power for heavy duty efficiency when baling cardboard and plastic
Large vertical baler with 8000 kg of pressing force and a super-fast pressing cycle of less than 25 seconds. Pneumatic powered and easy to install.
The A509 compacts a wide variety of recyclable waste and with the adjustable bale size it can adapt to different situations and materials. With a wide opening and spacious pressing chamber, the A509 is able to handle bulky materials and large volumes.
With plastic bales up to 300kg – an automated bale out mechanism is a must, and the A509 has a two-handed system that lives up to the EN16500 safety standard
The heavy-duty machine is based on pneumatic technology, two cylinders powered by compressed air allow for a pressing force of 8000 kg and a super-fast pressing cycle of only 15-25 seconds.
If the risk of leaking hydraulic oil sounds like a bad idea, a pneumatic machine is the way to go, removing the risk of contamination, and easy and fast to install.
Carboard Bale
Plastic Bale
Pressing cycle
< 225 kg
< 300 kg
15-25 sec.
Height
760-880 mm
Width
1250 mm
Depth
835 mm
Banding
19 mm (#999021)
Height
570 mm
Width
1250 mm
Depth
800 mm
Height
2530 mm
Width
1450 mm
Depth
1040 mm
Weight
920 kg
Noise Level
< 70 db (A)
Pressing force at 8 bars
8000 kg
Certifications
CE, EN16500, UKCA

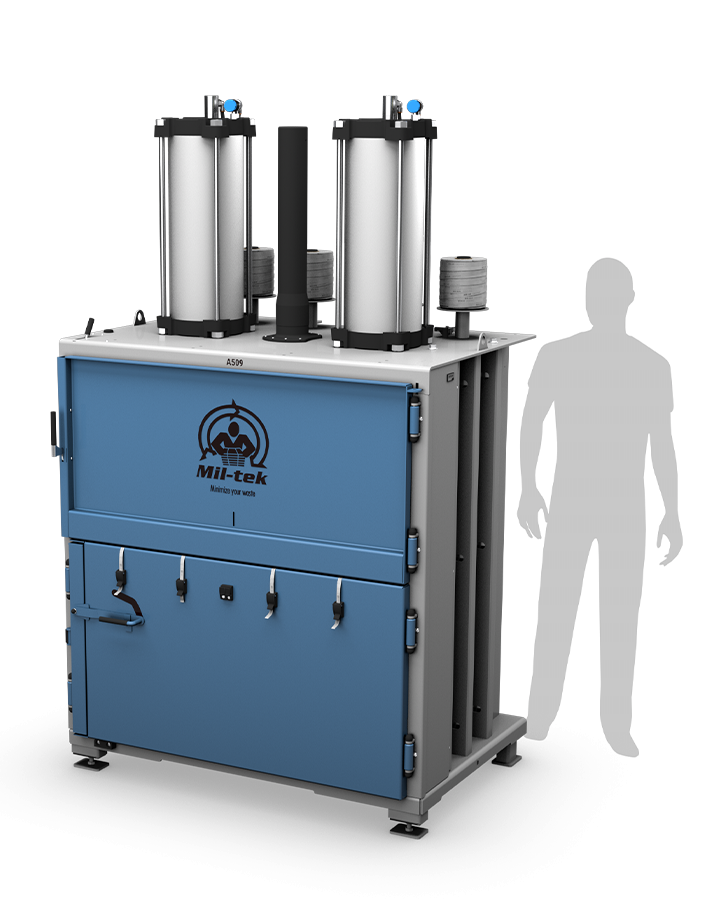

A509 Cardboard & Plastic Baler
You can add dust extraction to this baler.
